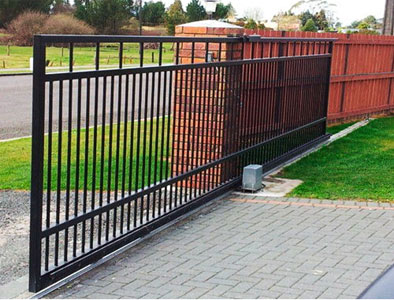

Automatic Sliding Gate

Our company is highly instrumental in offering an attractive range of Sliding Gates. We have fabricated these gates from the best quality cast iron and steel component. Our fabricators have also taken care of the specifications of the customers' needs. We make this range available in various designs, finishes, sizes and other technical specifications in order to suit the different preferences of the clients.

up to 400 kg

Specification –

• Self locking electromechanical operator suitable for residential use
• 24 Vdc version available for intensive use.
• Unlock device fast and easy to use
• Design that matches with any architectural style
• Vertical and horizontal fixing positions adjustable
• Easy to wire thanks to the pull-out terminals
• Low maintenance required

TECHNICAL DATA	MS4	MS424
Control panel power supply	230 Vac	230 Vac
Motor power supply	230 Vac	24 Vac
Absorbed Power	170W	50W
Absorbed current	0.85 A	2A
Torque	25 Nm	25 Nm
Working ratio	30%	80%
IP level	IP 54	IP 54
Insulation class	F	Y
Thermal safety switch	130oC	–
Operating temp	-20oC / +70oC	-20oC / +70oC
Gate max weight	400 Kg	400 Kg
Opening speed	11m / min	11m / min
Capacitor	9 µF	–
Lubrication	Grease	Grease
Weigh
