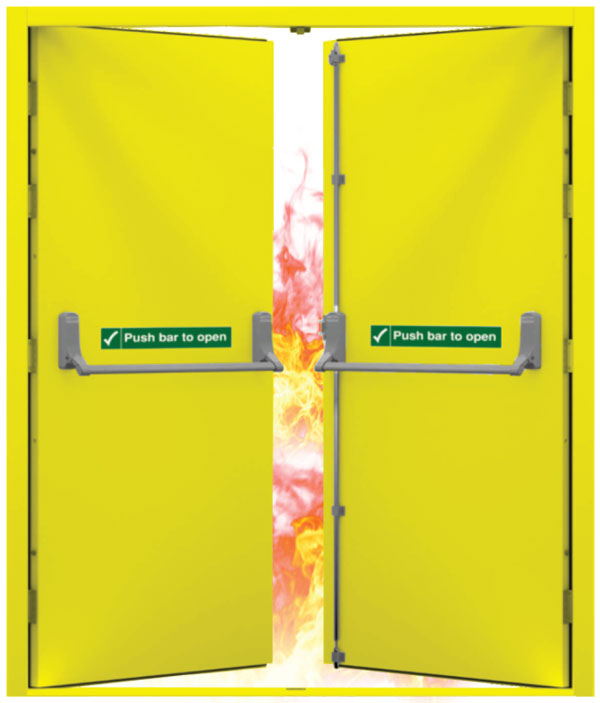

FIRE DOOR

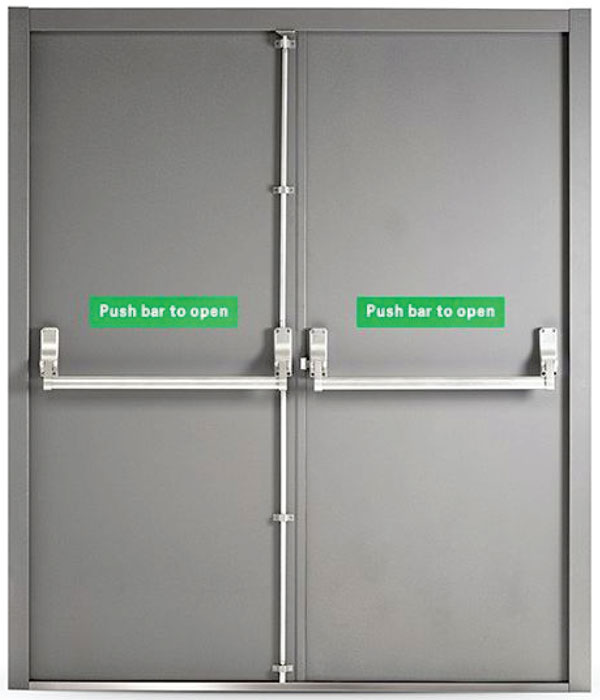

Technical Feature Fire Rated Door (G.I- Steel Series)

46 MM thick Composite Metal Fire Doors of 120 minutes (2 Hrs.) Fire Rating.


DOOR FRAME: - Double / Single Rebate profile of size 143 MM X 57 MM made out of 16 gauge thick galvanized steel sheets, finally finished with stove zinc chromate (etched “H”) primer coating, with anti- corrosive pure polyester thermosetting polyurethane aliphatic grade 120 MICRON paint of approved color/shade.

DOOR SHUTTER:- 46 mm thick Door leaf shall be manufactured from 2 nos. 18guage thick galvanized steel sheets finished with weld less lock seam joints for a dent free, seamless finish with fire rated infill material for 120 min. fire resistant rating confirming to BS: 476 part 22 & IS- 3614 part-II also G.I- Steel sheets with lock seam joints at site edges and internal reinforcement at top, bottom and side edges for fire rating. Finally finished with stove zinc chromate (etched “H” ) primer coating, with anti- corrosive pure polyester thermosetting polyurethane aliphatic grade 120 MICRON paint of approved color/shade, the door leaf and frame shall have passed minimum 250 hours of salt spray test.

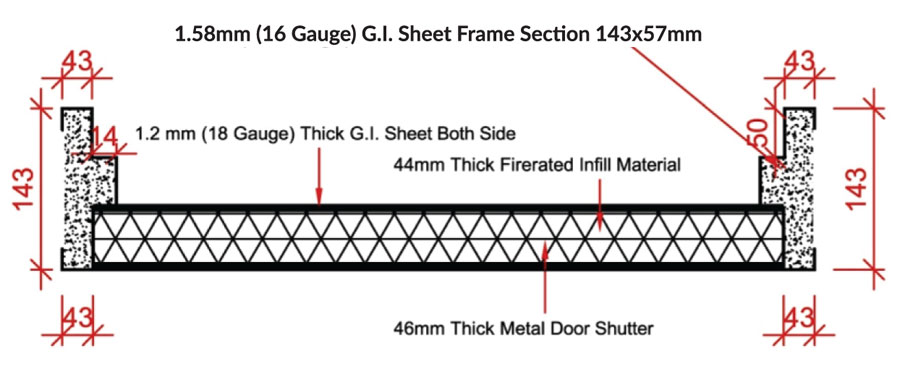

Cross Section of G.I – Steel Fire Door



Technical Feature Fire Rated Door (Wooden Series)
55 MM thick Composite Wooden Fire/Smoke Check Doors of 120 minutes (2 Hrs.) Fire Rating.
DOOR FRAME: -Wooden Fire Door Frame of Section 145 X 70 mm with heat activated intumescent fire seal strip of section 10 X 4 mm (Seal Z- U.K) & one coat of anti-termite fire retardant primer.

DOOR SHUTTER:- 55 mm thick asbestos free composite Fire/ Smoke check wooden shutters of 120 min. fire resistant rating confirming to BS: 476 part 22 & IS- 3614 part-II comprising two nos. of  calcium silicate boards having density not less than : ≤ 1150 Kg/M3 & thermal conductivity 0.13 Kcal/hr mC/ and alkalinity: pH=10. With sandwiching 27 mm thick fire resistance insulation filler coated with FR silicon sealant and faced with 4 mm thick commercial ply on both side with heat activated intumescent fire seal strip of size 10 X4 mm (Seal Z – U.K) mounted in the grooves of hardwood lipping on all sides except bottom.



Cross Section of wooden Fire Door

Technical Feature Acoustic cum Fire Rated Door (Wooden Series)

82 MM thick Acoustic Cum Fire / Smoke Check Wooden Doors of 120 minutes (2 Hrs.) Fire Rating.
DOOR FRAME:- Wooden Door Frame of Section 145 mm X 85 / 90 mm. with heat activated intumescent fire seal strip of size 10 X 4 mm ( Seal Z ) & acoustic seal Batwing/ Perimeter Seal (Enviroseal).

DOOR SHUTTER:- 82 MM thick having 38 DB acoustic cum fire door of 120 min. fire rating having infill of 46 mm thick resin bonded glass wool of 24 Kg/M³density coated with FR acrylic sealant sandwiched between two nos. of 12 mm thick non-combustible calcium silicate board & 100% without asbestos having density not less than THAN ≤ 1150 Kg/M3  & thermal conductive 0.14 W/m*K faced with 6 mm thick commercial ply on both faces & with heat activated intumescent fire seal strips of size 10 X 4 mm ( Seal Z ) mounted in grooves having hardwood lipping & Bottom Seal and Astragal/Meeting Seal (Enviroseal).







Technical Details of Fire Hose Cabinet Door (MetalSeries)

Standard Shaft door with frame suitable to fit in the duct made of not less than 18 SWG MS Sheet pressed from to Single rebate profile of size 75mm x 40mm. with Provision for M.S. Fasteners on each vertical jamb to fix to wall/RCC Surface also Frame shall be join with shutter by M S Hinges, Shutter made 18 Gauge M S Tube of 32mm x 50mm with 4-5mm thick Breakable Glass With Glass beading of the Shutter with Provision of L – Key Lock. with. M S Handle 100mm Long,The Doors are finished with one coat of red oxide primer and finally finished with 3 Coat of Red Duco Paint.

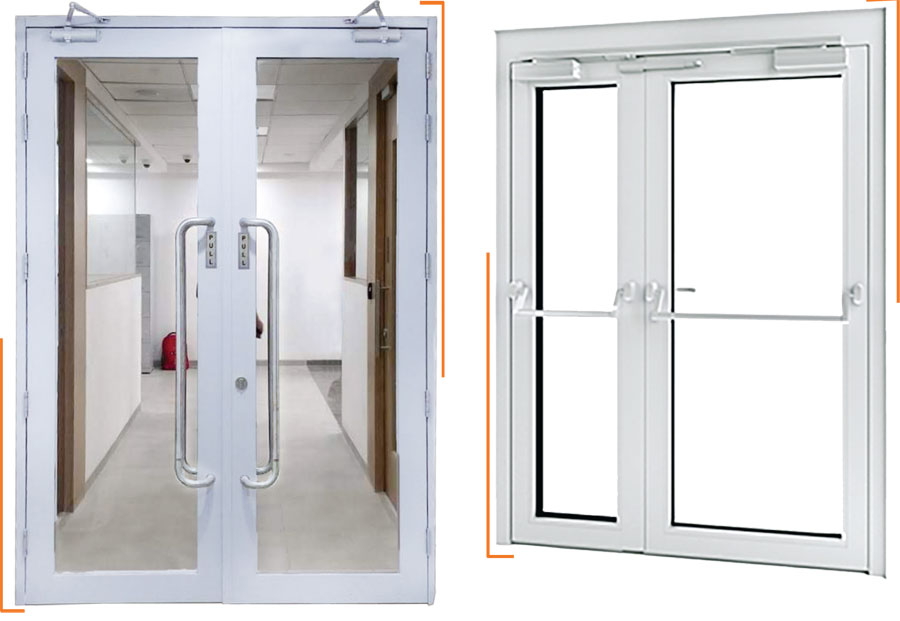

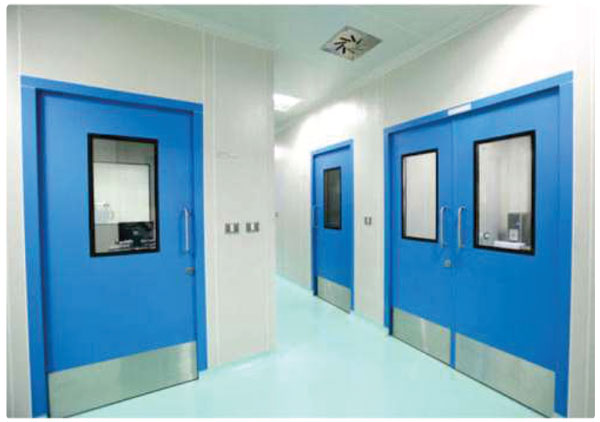

Technical Details of 2 Hrs. Fire Rated Glazed Door (G.I- Steel Series)

Our Factory-finished Modern Glazed Fire Door with G.I Frame and with 0.6 MM clear fire rated glass, As Per ASTME-152-81a, with epoxy primer and polyurethane finish paint are often meet the most stringent requirements for multiplexes, IT Sector,  industries, Lift Lobbies.

Technical Details : - 120 MINUTES (2Hr.) FIRERETING Galaxy Make G.I Steel Glass Fire Door Asper IS-3614, BS-476 Part- 20 & 22. With (UV Resistant Grade) Paint finish.

Galaxy Make - Door frame shall be double rebate profile of size -140MM X 65 MM made out of 18 gauge thick galvanized steelsheet. The Frame Shall  be 3MM  thick  support plate  pre-punched  cut  out  to receive hardware & ironmongery. ALLCUTOUTS INCLUDING HINGE PLATES, STRIKE PLATES, HAVE MORTAR GUARD COVER TO PREVENT CEMENT, DUSTINGRESS INTO CUTOUTS. Frames should be provided with back plate bracket and anchor fasteners for installation.THE DOOR FRAME IS FIXED BY 8 NOS. MSFASTNER OF SIZE- 10 X 125 MM.

Galaxy Make - Door Shutter shall be 52 mm thick Door leaf shall be manufactured from 2nos.of 22gauge thick galvanized steel sheets finished with weldless lock seam joints for adent free, seamless finish. The infill material shall be FIRE RATED ACRYLIC SEALANT & NON - COMBUSTIBLE MARITAL WITH LOCKS EAMJOINTS AT STILEEDGES & INTERNAL REINFORCEMENT AT TOP, BOTTOM, STILEDGES FOR FIRE RATING. SUITABLE FOR 2 HRS. FIRE RATING FOR STABILITY & INTEGRITY.

The Door (Frame + Shutter) edges should be interlocked with a bending radius of 1.4mms. Fire Rated Vision Glass should be 0.6mm thick applicable should be provided as per manufacturer’s recommendation with abeading and screws from inside.
All doors and frames shallbe finished with stove zinc phosphate etched primer coating, with anti-corrosive pure polyester thermo setting poly urethanealiphatic grade120 MICRON fire rated paint of off white color.



Technical Feature General Purpose Steel Door. ( SS Series )

Frame: To be made by 16 SWG Steel Sheet edges should be interlocked with a bending radius of 1.4mm by high quality computerized bending machine for an overall dimension of 125x60mm and fixing to RCC wall by 8 NOS. MSFASTNER OF SIZE- 10X125 MM. As per IS-4351

hutter : To be made from 18 SWG Steel Sheet bent to form hollow box of40mm over all thickness welded at meeting with 6 mm thick MS flat all along the perimeter forming square edges at corners and braced with channel shaped 35 mm wide 16 SWGSteel Sheet horizontal stiffener @ 500 mm max, including SS BB hinges. As per IS-4351

FINAL FINISH: - All doors and frames shall be finished with grinder & one coat of primer.



Technical Feature Fire Rated Wire Glass

Fire Rated Wire Glass should be 6.8 mm thick as per E.N standard E.N- 13501-2:2007, with light transmission ratio – 92 %. & fire rating which can also withstand thermal shock capacity, used as a glazing and is to be fixed in between the glass beading by using ceramic fiber and fire rated acrylic sealant in accordance with BS: 476 part 22 for fire rating for stability and integrity.

Technical Feature Fire Rated Clear Glass

Fire Rated Clear Glass should be 6 mm thick as per E.N standard E.N-364-1:1999,& ASTME-152-81a. fire rating which can also withstand thermal shock up to 1100 degree C, G-Value- 90%, UG Value-5.8 [K/WM2], used as a glazing and is to be fixed in between the glass beading by using ceramic fiber and fire rated acrylic sealant in accordance with BS: 476 part 22 : 1987 for fire rating for stability and integrity.
